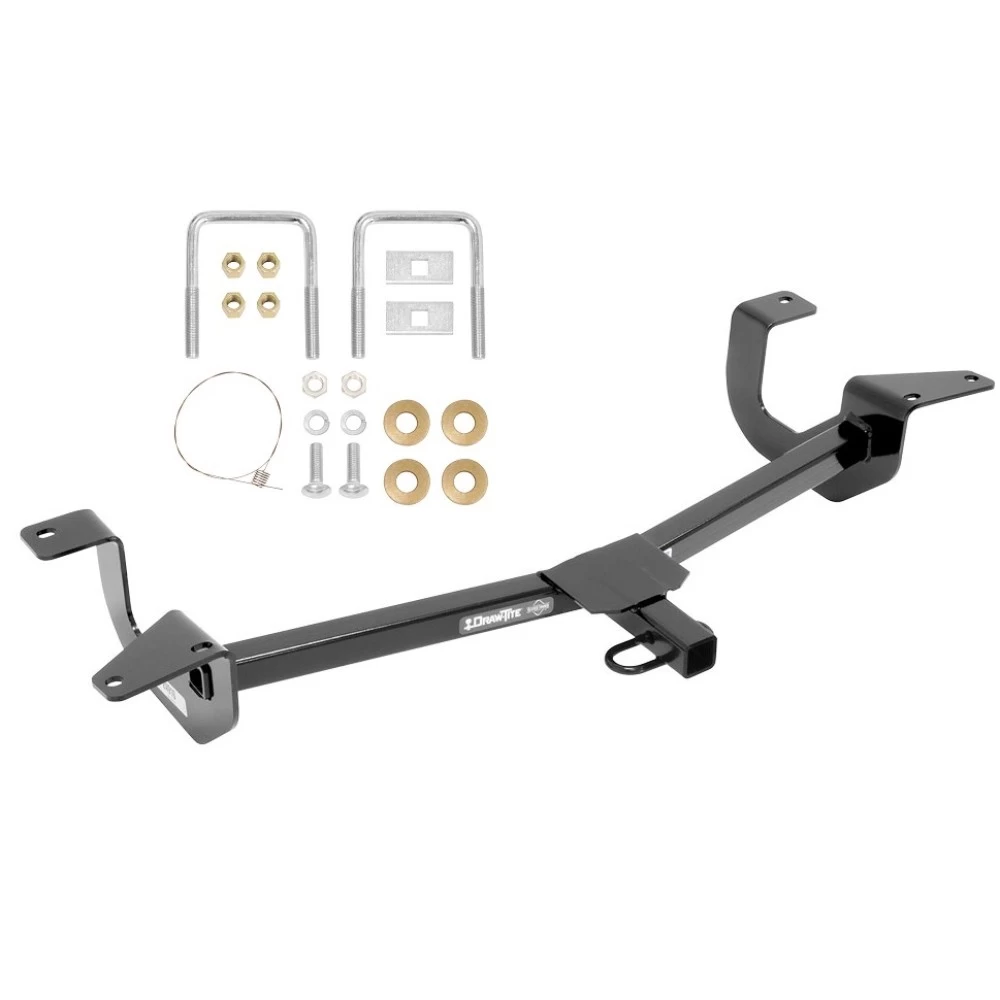

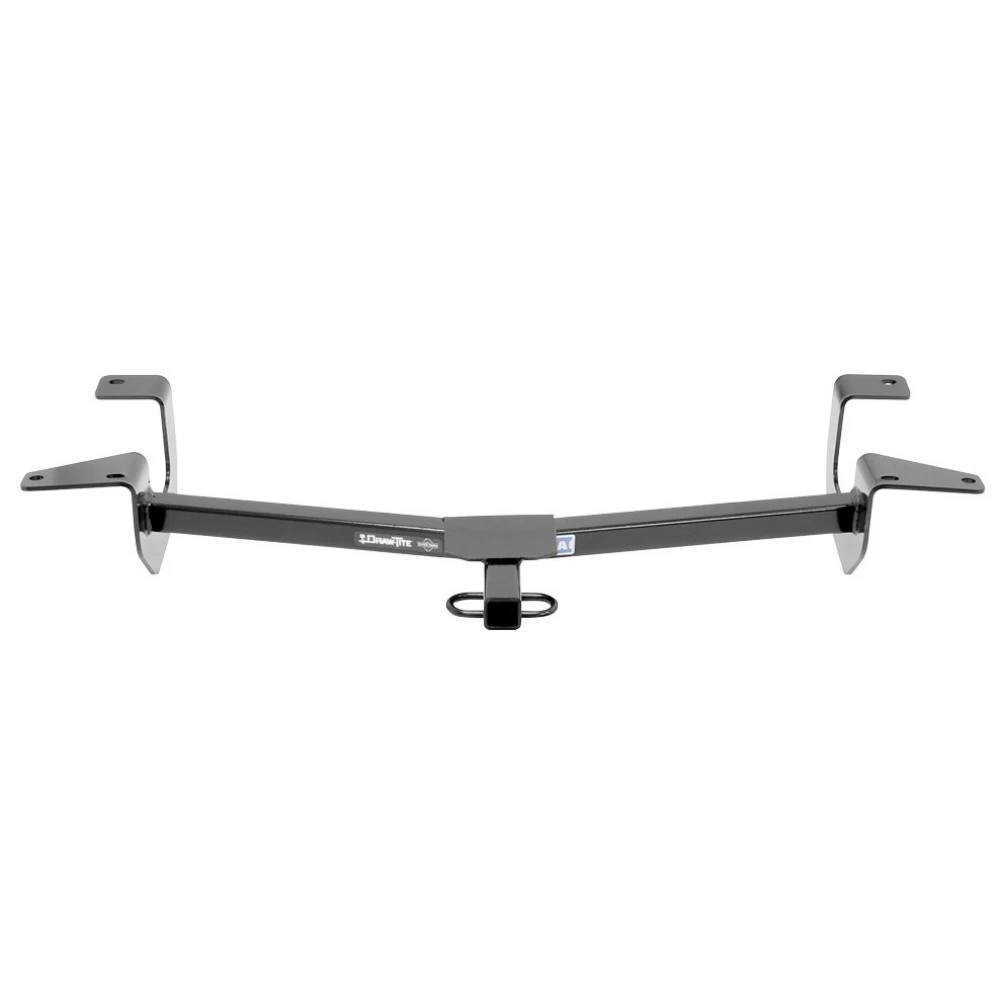

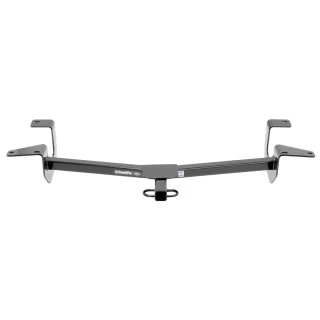

Trailer Tow Hitch For 14‑19 Ford Fiesta Sedan 1‑1/4" Towing Receiver Class 1
Model: 249102014 - 2019 Ford, Fiesta, 4 Dr. Sedan
Trailer Hitch Specs:
| Part Number | 24910 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 2014 2015 2016 2017 2018 2019
$214 29 $334.61 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$334.61 $214 29
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $53.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24910
- UPC: 742512249101
- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
2014 - 2019 Ford, Fiesta, 4 Dr. Sedan
Trailer Hitch Specs:
| Part Number | 24910 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 14 15 16 17 18 19 2014 2015 2016 2017 2018 2019
Get Expert Help
Trailer Tow Hitch For 14-19 Ford Fiesta Sedan 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Ford Fiesta Sedan
Part Numbers:
- 24910
- 60342
- 77297
Wiring Access Location:
- PC3, PC4
Tools Required:
- Fishwire (provided)
- Wrenches: 5/8", 11/16"
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Position U-Bolts:
- Place the U-bolts in the rearmost indentation in the frame extension as shown.
-
Raise Hitch:
- Lift the hitch into place and loosely install the conical washers and 7/16-20 (fine thread) nuts.
-
Fishwire Carriage Bolts and Blocks:
- Insert the coiled end of the fishwire through the forward attachment hole in the hitch, into the frame, and out the access hole.
- Slide the block onto the fishwire and thread the carriage bolt into the coil. Keep the block and bolt separate until inside the frame.
- Pull the carriage bolt and block into position with the thread showing below the hitch side bracket.
- Install the lock washer and 7/16-14 (coarse thread) nut.
-
Tighten Fasteners:
- Tighten all 7/16” fasteners to 50 Lb.-Ft. (68 N*M) using a torque wrench.

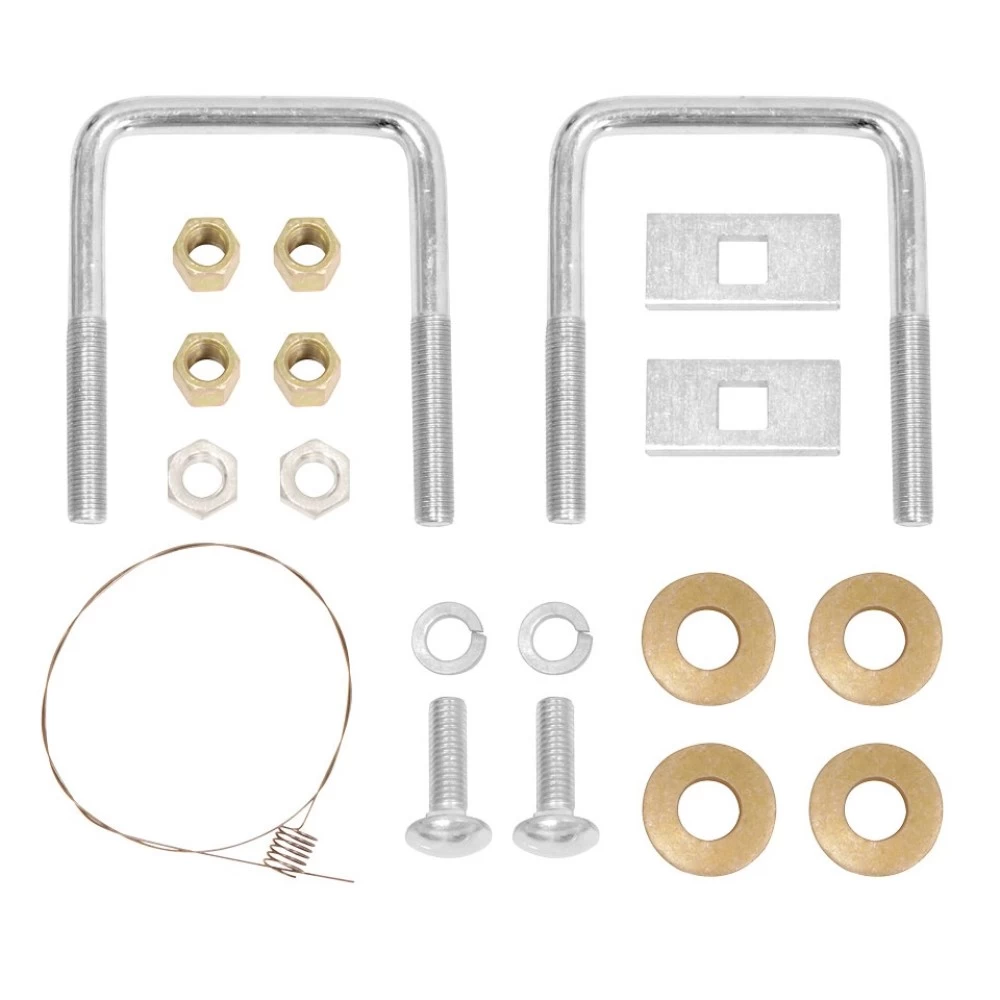

Hardware List:
- (2) U-Bolts: 7/16-20
- (2) Blocks: 3/16” x 1” x 2”
- (4) Conical Washers: 7/16”
- (2) Lock Washers: 7/16”
- (4) Nuts: 7/16-20 (fine thread)
- (2) Nuts: 7/16-14 (coarse thread)
- (2) Carriage Bolts: 7/16-14 x 1-1/2”
- (1) Fishwire: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions for Vehicle (All Models)
Part Numbers:
- 24910
- 60342
- 77297
Wiring Access Location:
- PC3, PC4
Tools Required:
- Fishwire (provided)
- Wrenches: 5/8", 11/16"
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Position U-Bolts:
- Place the U-bolts in the rearmost indentation in the frame extension as shown.
-
Raise Hitch:
- Lift the hitch into place and loosely install the conical washers and 7/16-20 (fine thread) nuts.
-
Fishwire Carriage Bolts and Blocks:
- Insert the coiled end of the fishwire through the forward attachment hole in the hitch, into the frame, and out the access hole.
- Slide the block onto the fishwire and thread the carriage bolt into the coil. Keep the block and bolt separate until inside the frame.
- Pull the carriage bolt and block into position with the thread showing below the hitch side bracket.
- Install the lock washer and 7/16-14 (coarse thread) nut.
-
Tighten Fasteners:
- Tighten all 7/16” fasteners to 50 Lb.-Ft. (68 N*M) using a torque wrench.
Hardware List:
- (2) U-Bolts: 7/16-20
- (2) Blocks: 3/16” x 1” x 2”
- (4) Conical Washers: 7/16”
- (2) Lock Washers: 7/16”
- (4) Nuts: 7/16-20 (fine thread)
- (2) Nuts: 7/16-14 (coarse thread)
- (2) Carriage Bolts: 7/16-14 x 1-1/2”
- (1) Fishwire: 7/16”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
