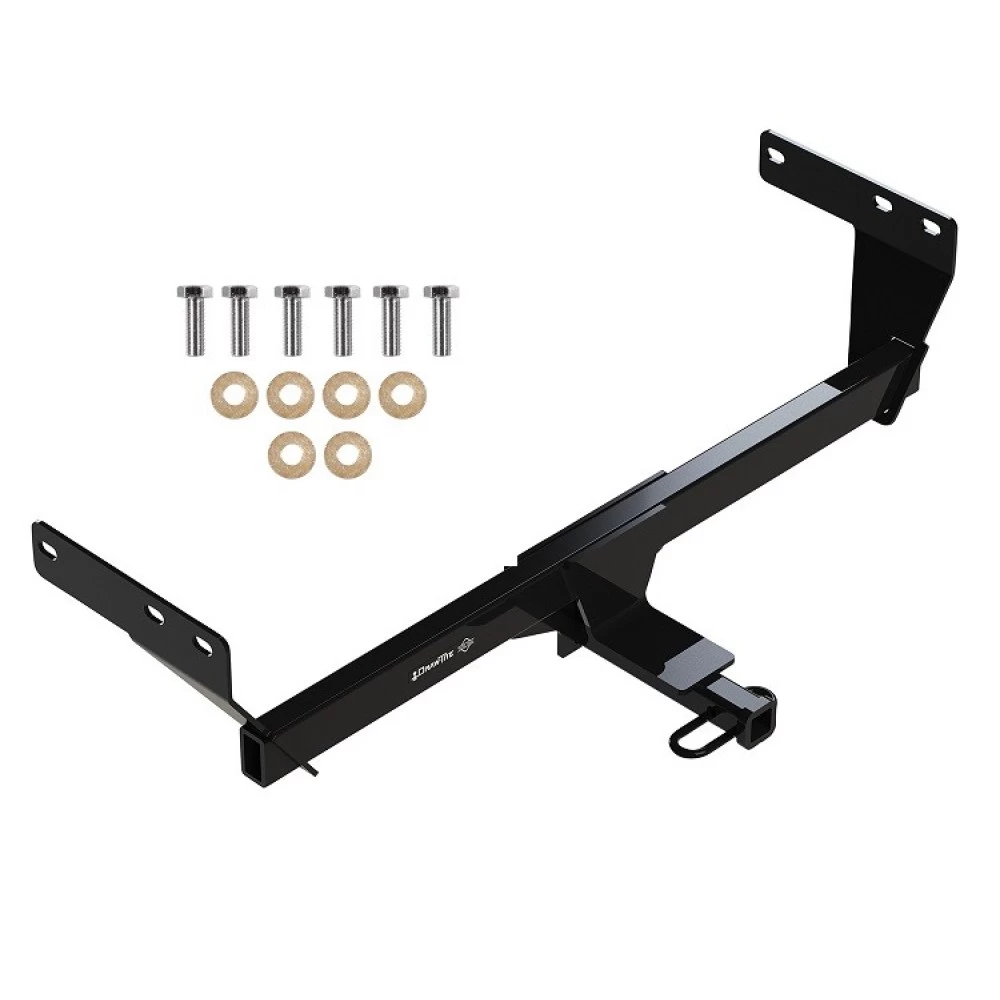

Trailer Tow Hitch For 21‑24 Nissan Rogue Class 2 1‑1/4" Receiver Draw‑Tite
Model: 37135Custom Fit Trailer Hitch
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2021 - 2024 Nissan, Rogue, All Styles
Trailer Hitch Specs:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
Partial list of fitment years: 21 22 23 24 2021 2022 2023 2024
$219 58 $342.89 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$342.89 $219 58
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $54.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 37135
- Includes: Class 2 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
Specification | |
Attachment Location | Rear |
Color | Black |
Drawbar Included | No |
Drilling Required | No |
Gross Towing Weight | 3,500 lbs. |
Hitch Class | II |
Material | Steel |
Maximum Tongue Weight | 300 lbs. |
Mounting Hardware Included | Yes |
Mounting Type | Vehicle Frame |
Receiver Size | 1.25 in. |
Receiver Type | Square Tube |
Be the first to ask a question.
File | Size | |
---|---|---|
Trailer Hitch Instructions | 781.37KB | Download |
Description
Custom Fit Trailer Hitch
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2021 - 2024 Nissan, Rogue, All Styles
Trailer Hitch Specs:
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
Partial list of fitment years: 21 22 23 24 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 21-24 Nissan Rogue Class 2 1-1/4" Receiver Draw-Tite Install Notes
Installation Instructions for Nissan Rogue (2021-Current)
Part Numbers:
- 37135
- 06203
- CQT37135
Wiring Access Location:
- PC3
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Tap: M12 x 1.25
- Socket: 19mm
- Socket Extension
Installation Time:
- Estimated: 30 minutes (for professional installers)
Step-by-Step Instructions:
-
Clean Access Holes:
- Use an M12 x 1.25 tap to remove paint and debris from the existing weldnuts on both sides of the vehicle frame.
-
Install Hitch:
- Raise the hitch into position and align it with the mounting holes.
- Loosely install six (6) M12 x 1.25 x 35mm bolts and six (6) 1/2" conical washers (teeth side facing the hitch).
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 76 lb-ft (103 N*m).
Torque Specifications:
- M12 bolts: 76 lb-ft (103 N*m)
Hardware List:
- (6) Hex Bolts, M12 x 1.25 x 35mm CL8.8
- (6) Conical Washers, 1/2"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (158 kg)
Additional Notes:
- Authorized Drawbar Kit: 36071 (sold separately; must be used in the RISE position only).
- Fastener Kit: 37135F.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Vehicles (Excluding Quad Exhaust Models)
Part Numbers:
- 37135
- 06203
- CQT37135
Wiring Access Location:
- PC3
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Tap: M12 x 1.25
- Socket: 19mm
- Socket Extension
Installation Time:
- Estimated: 30 minutes (for professional installers)
Step-by-Step Instructions:
-
Clean Access Holes:
- Use an M12 x 1.25 tap to remove paint and debris from the existing weldnuts on both sides of the vehicle frame.
-
Install Hitch:
- Raise the hitch into position and align it with the mounting holes.
- Loosely install six (6) M12 x 1.25 x 35mm bolts and six (6) 1/2" conical washers (teeth side facing the hitch).
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 fasteners to 76 lb-ft (103 N*m).
Torque Specifications:
- M12 bolts: 76 lb-ft (103 N*m)
Hardware List:
- (6) Hex Bolts, M12 x 1.25 x 35mm CL8.8
- (6) Conical Washers, 1/2"
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight: 3,500 lb (1,588 kg)
- Max Tongue Weight: 350 lb (158 kg)
Additional Notes:
- Authorized Drawbar Kit: 36071 (sold separately; must be used in the RISE position only).
- Fastener Kit: 37135F.
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty: This product is backed by a limited warranty. For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
