Trailer Tow Hitch Hardware Fastener Kit For 17‑20 Hyundai Elantra Except Sport 1‑1/4" Receiver Class 1
Model: HWKIT1(24939F)This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2017-2020 Hyundai, Elantra, 4 Dr. Except Sport
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24939 77939
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 2017 2018 2019 2020
$39 59 $44.64 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
View products that fit your vehicle
Fits 's with the following styles:
View products that fit your vehicle
Fits 's with the following styles:
$44.64 $39 59
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $9.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: HWKIT1(24939F)
- Includes: Hardware Kit for Class 1 Trailer Tow Hitch
Compatibility Chart
Year Range | Make | Model | Style |
---|---|---|---|
Loading... |
This Hitch Hardware Fastener Kit Fits The Following Vehicles:
2017-2020 Hyundai, Elantra, 4 Dr. Except Sport
(Hardware kits ships from Mexico, it can take around 3 days for the item to ship and for tracking to be posted)
This hardware kit will only work for reinstalling the following hitch part numbers from Draw-Tite Reese and Hidden Hitch: 24939 77939
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 17 18 19 20 2017 2018 2019 2020
Be the first to ask a question.
Get Expert Help
Trailer Tow Hitch Hardware Fastener Kit For 17-20 Hyundai Elantra Except Sport 1-1/4" Receiver Class 1 Install Notes
Installation Instructions for Hyundai Elantra (2017-Current)
Part Numbers:
- 24939
- 77939
- CQT24939
Wiring Access Location:
- PC3, PC4
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Utility Knife
- Sockets: 10mm, 11/16"
- Flat-Head Screwdriver
- Tape Measure
- Tape
- Phillips Screwdriver
- Tin Snips
- Lubricant or Soapy Water
- Marker
- Drill with 1/2" Drill Bit
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Installation Time:
- Approx. 50 minutes (Professional Installer)
Step-by-Step Instructions:
-
Remove Appearance Panel:
- Detach the driver-side appearance panel by removing 10mm hex nuts and plastic rivets. Remove rubber plugs from the frame rail, if present, and return them to the vehicle owner.
-
Lower Muffler and Remove Heat Shield:
- Detach two rubber isolator hangers (one on the side and rear of the muffler). Spray lubricant or soapy water on the hanger rods for easier removal.
- Remove the heat shield using a 10mm socket. Trim as shown in the instructions.
-
Remove Lower Fascia Trim:
- Mark the center of the lower fascia. Remove one plastic rivet from the bottom and one screw on each side using a Phillips screwdriver. Carefully separate the lower fascia trim and remove the remaining plastic tabs.
-
Raise Hitch as Template:
- Use the reverse pullwire method to insert a 7/16"-14 x 1.75” carriage bolt and spacer into the frame rail through the access hole. Feed the pull wire through the forward hitch holes. Hand-tighten the hitch in place and ensure it is level and centered. Mark or center-punch the two rearward holes on each side.
-
Drill Holes:
- Lower the hitch carefully, ensuring forward bolts do not fall into the frame rail. Drill the marked holes and remove burrs.
-
Install Rear Fasteners:
- Use the pull wire to guide the rear fasteners through the drilled holes and secure them. Leave the pull wires attached.
-
Reinstall Heat Shield:
- Reattach the trimmed heat shield, sandwiching it between the frame rail and hitch.
-
Install Hitch:
- Raise the hitch into position, threading the pull wires through the corresponding holes. Remove the pull wires and secure the fasteners with conical washers and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M).
-
Trim Lower Fascia:
- Trim the lower fascia as shown, ensuring smooth edges with rounded corners.
-
Reinstall Fascia:
- Reattach the outer plastic tabs and reinstall the lower fascia, ensuring all tabs fit securely. Replace screws and plastic rivets.
-
Raise Exhaust:
- Reattach the exhaust hangers and raise the exhaust into position. Lubricant helps with reinstallation.
-
Reinstall Appearance Panel:
- Secure the driver-side appearance panel removed earlier.

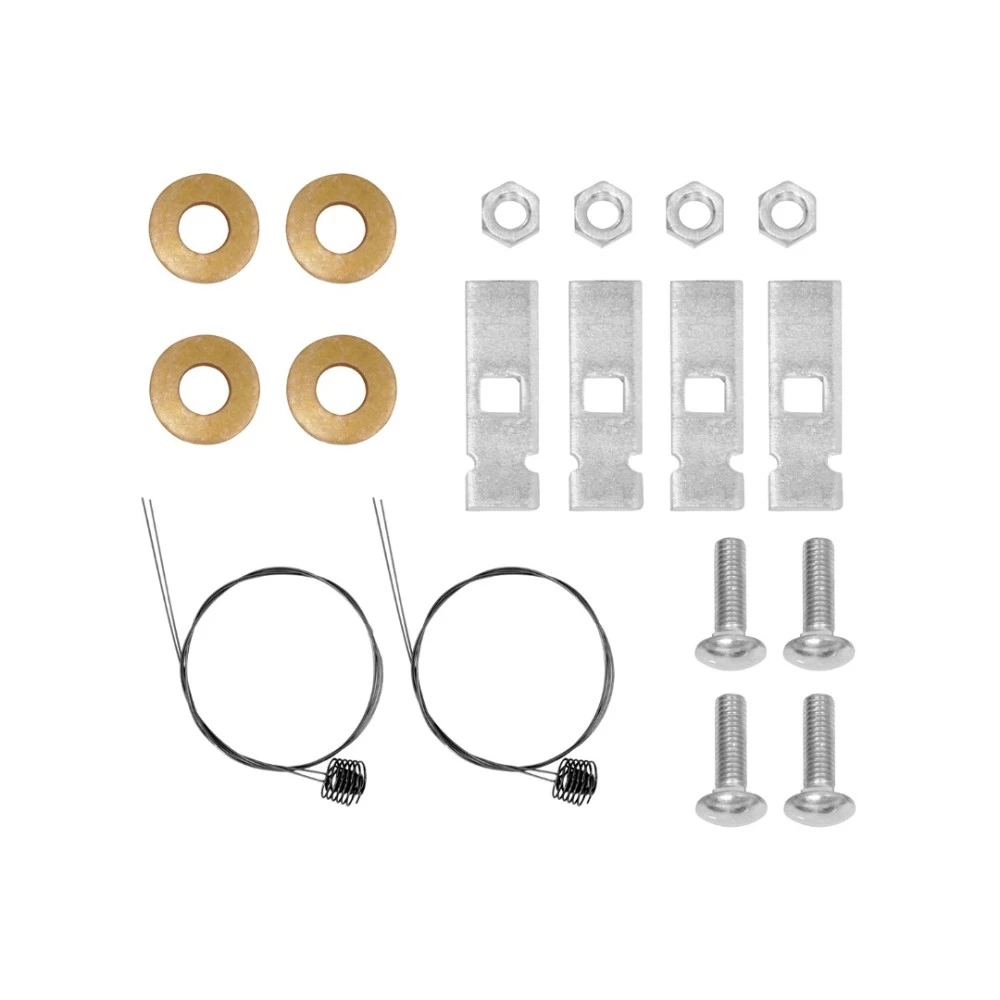

Hardware List:
- (4) Carriage Bolts: 7/16"-14 x 1.75" GR5
- (4) Spacers: 0.25" x 0.875" x 3"
- (4) Conical Washers: 7/16"
- (4) Hex Nuts: 7/16"-14 GR2
- (4) Fish Wires: 7/16"
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Frequently check the hitch to ensure all fasteners remain tight.
Installation Instructions for Hyundai Elantra (2017-Current)
Part Numbers:
- 24939
- 77939
- CQT24939
Wiring Access Location:
- PC3, PC4
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Utility Knife
- Sockets: 10mm, 11/16"
- Flat-Head Screwdriver
- Tape Measure
- Tape
- Phillips Screwdriver
- Tin Snips
- Lubricant or Soapy Water
- Marker
- Drill with 1/2" Drill Bit
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Installation Time:
- Approx. 50 minutes (Professional Installer)
Step-by-Step Instructions:
-
Remove Appearance Panel:
- Detach the driver-side appearance panel by removing 10mm hex nuts and plastic rivets. Remove rubber plugs from the frame rail, if present, and return them to the vehicle owner.
-
Lower Muffler and Remove Heat Shield:
- Detach two rubber isolator hangers (one on the side and rear of the muffler). Spray lubricant or soapy water on the hanger rods for easier removal.
- Remove the heat shield using a 10mm socket. Trim as shown in the instructions.
-
Remove Lower Fascia Trim:
- Mark the center of the lower fascia. Remove one plastic rivet from the bottom and one screw on each side using a Phillips screwdriver. Carefully separate the lower fascia trim and remove the remaining plastic tabs.
-
Raise Hitch as Template:
- Use the reverse pullwire method to insert a 7/16"-14 x 1.75” carriage bolt and spacer into the frame rail through the access hole. Feed the pull wire through the forward hitch holes. Hand-tighten the hitch in place and ensure it is level and centered. Mark or center-punch the two rearward holes on each side.
-
Drill Holes:
- Lower the hitch carefully, ensuring forward bolts do not fall into the frame rail. Drill the marked holes and remove burrs.
-
Install Rear Fasteners:
- Use the pull wire to guide the rear fasteners through the drilled holes and secure them. Leave the pull wires attached.
-
Reinstall Heat Shield:
- Reattach the trimmed heat shield, sandwiching it between the frame rail and hitch.
-
Install Hitch:
- Raise the hitch into position, threading the pull wires through the corresponding holes. Remove the pull wires and secure the fasteners with conical washers and hex nuts.
-
Tighten Fasteners:
- Torque all 7/16"-14 GR5 fasteners to 50 Lb.-Ft. (68 N*M).
-
Trim Lower Fascia:
- Trim the lower fascia as shown, ensuring smooth edges with rounded corners.
-
Reinstall Fascia:
- Reattach the outer plastic tabs and reinstall the lower fascia, ensuring all tabs fit securely. Replace screws and plastic rivets.
-
Raise Exhaust:
- Reattach the exhaust hangers and raise the exhaust into position. Lubricant helps with reinstallation.
-
Reinstall Appearance Panel:
- Secure the driver-side appearance panel removed earlier.
Hardware List:
- (4) Carriage Bolts: 7/16"-14 x 1.75" GR5
- (4) Spacers: 0.25" x 0.875" x 3"
- (4) Conical Washers: 7/16"
- (4) Hex Nuts: 7/16"-14 GR2
- (4) Fish Wires: 7/16"
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- Plug any holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear eye protection and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Frequently check the hitch to ensure all fasteners remain tight.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
