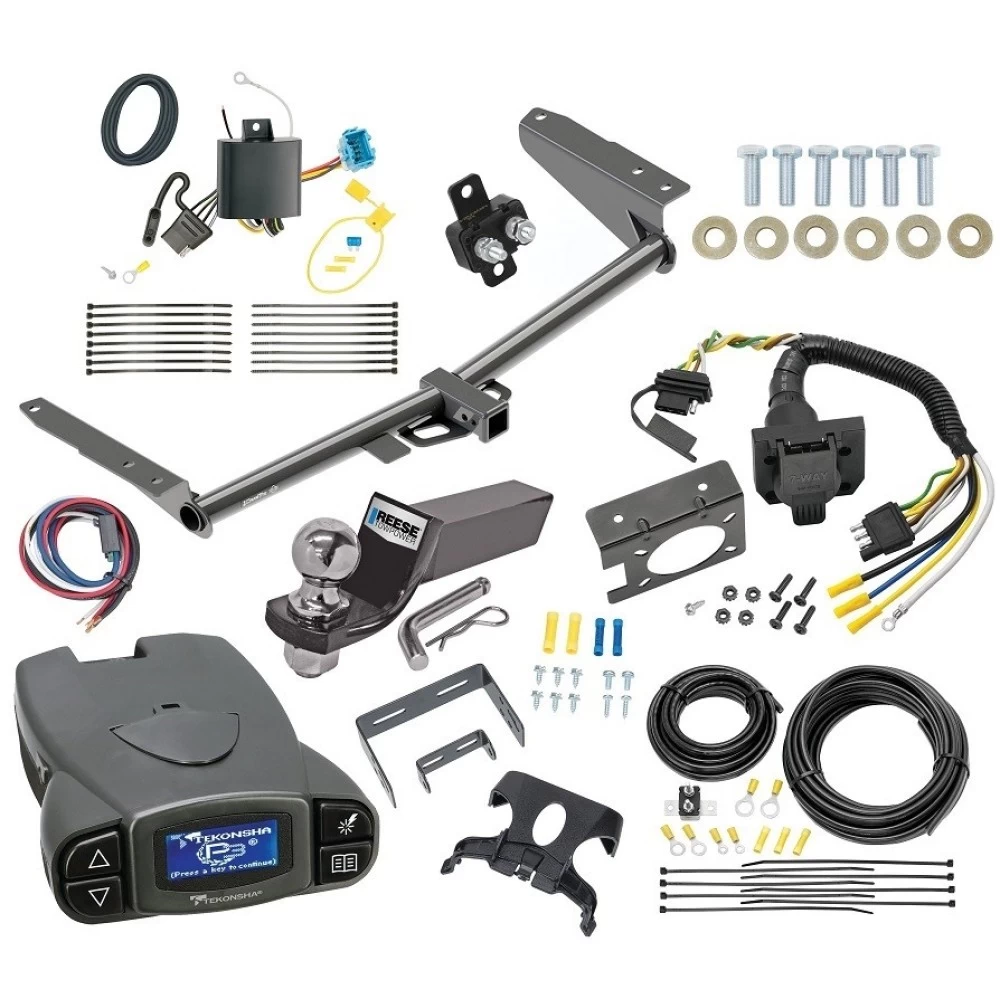

Installation Instructions for Trailer Hitch

Part Numbers:

• 76171
• 84171
• CQT76171

Applications:

• Years: 2018-Current
  • Make and Models: Honda Odyssey

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 19 mm
• 6" Socket Extension
• Panel Removal Tool
• Phillips Screwdriver
• Utility Knife
• Exhaust Removal Pliers
• Tape

Step-by-Step Instructions:

1. Remove Mud Flap and Bottom Appearance Panels:

• Remove the mud flap on the driver side if present.
• Use a Phillips screwdriver, panel removal tool, and 10 mm socket to remove (4) rivets and (2) screws from the bottom appearance panel on the driver side.
• Use the panel removal tool to remove (2) rivets from the small plastic panel above the exhaust tip on the passenger side.
• Retain all fasteners and panels for reinstallation.

2. Lower Exhaust Pipe:

• Use exhaust removal pliers to lower the exhaust pipe on the passenger side temporarily.
• Use a support or bungee cord to prevent damage to the muffler.

3. Install Hitch:

• Raise the hitch into position and carefully slide it over the passenger-side exhaust pipe first.
• Loosely install M12 bolts and conical washers into the hitch.

4. Tighten Fasteners:

• Tighten all M12 fasteners with a torque wrench to 76 lb-ft (103 N·m).

5. Trim Bottom Appearance Panel:

• Trim the bottom appearance panel as shown in the provided diagram.

6. Reinstall Components:

• Reinstall all fasteners, exhaust, appearance panels, and mud flaps removed in Steps 1 and 2.

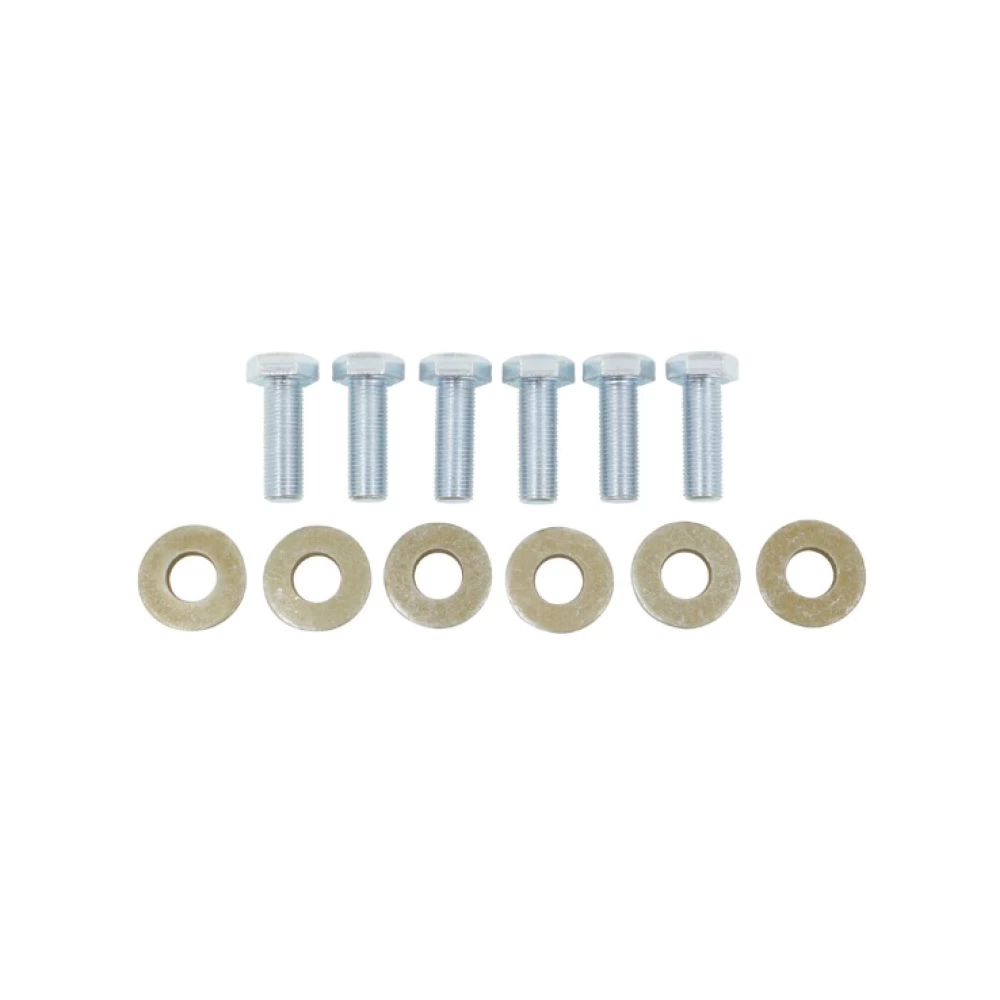

Hardware List:

• 6 × Conical Washers (1/2”)
• 6 × M12 Bolts (1.25 × 35 mm, CL8.8)

Safety Notes:

• Always wear safety glasses during installation.
• Proper torque is essential to secure the hitch to the vehicle.
• Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball before use.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight (Weight Carrying): 4,500 lbs (2,043 kg)
• Max Tongue Weight (Weight Carrying): 675 lbs (306 kg)
• Max Gross Trailer Weight (Weight Distributing): 5,000 lbs (2,270 kg)
• Max Tongue Weight (Weight Distributing): 675 lbs (306 kg)
• Installation Time: Approximately 25 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

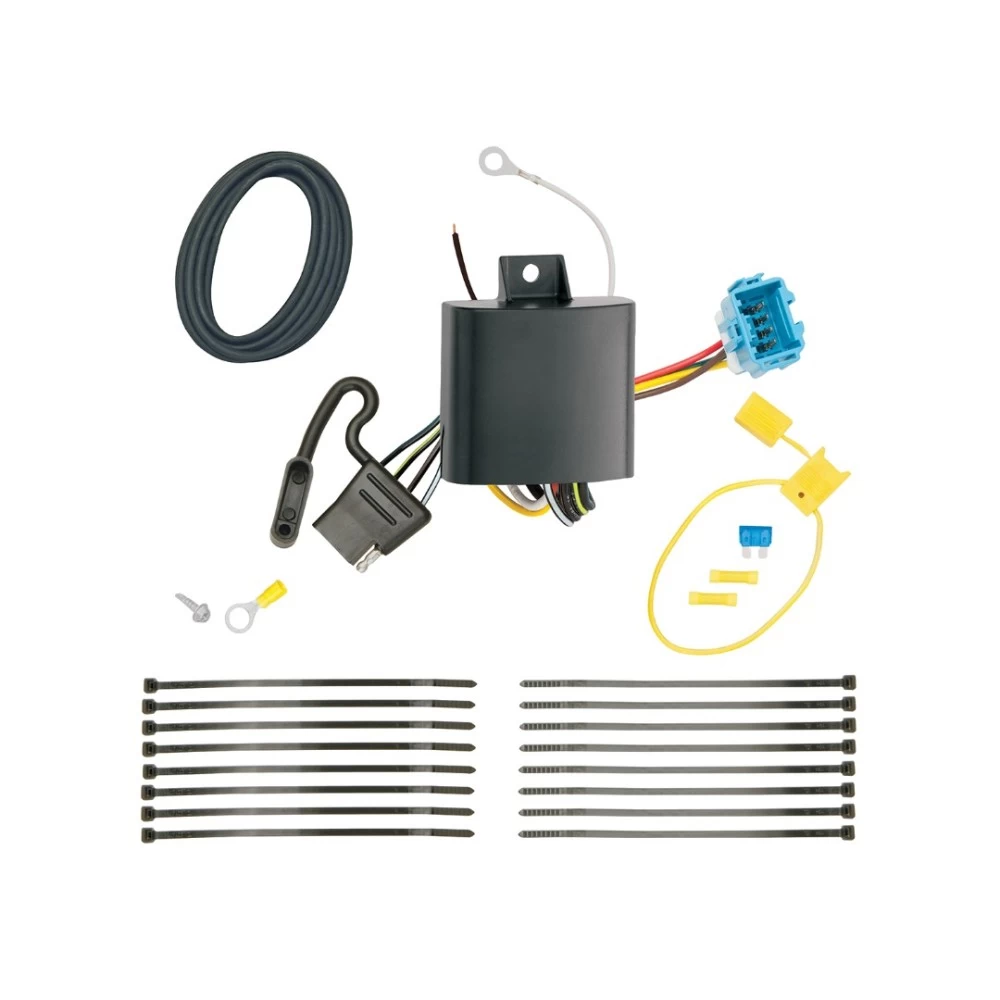

Installation Instructions for T-One® T-Connector for Honda Odyssey

Part Numbers:

• 118753

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Trailer Wiring Harness:

   • Open the rear hatch and push forward the rear seat.
   • Temporarily remove the vehicle’s access panel on the passenger side to access the vehicle’s trailer wiring harness.

2. Locate the Tow Plug:

   • Locate the blue tow plug inside the storage compartment, taped to the vehicle wiring harness.
   • Insert the tow plug into the connector. Be careful not to damage the locking tabs and ensure the connectors are fully inserted with the locking tabs in place.

3. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind any surface prior to drilling to avoid damage to the vehicle or personal injury.

4. Mount the Black Box:

   • On the driver’s side, mount the T-Connector black box using the provided double-sided tape.
   • Secure the remainder of the T-Connector harness with the provided cable ties, avoiding areas that may pinch or cut the wire.

5. Route the Power Wire:

   • Locate the black 12-gauge power wire from the T-Connector box.
   • Attach the provided black wire and route it along the vehicle’s exterior frame to the engine compartment, avoiding hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.

6. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.

   Warning: Follow all warnings and cautions printed on the tow vehicle’s battery.

7. Reconnect the Battery and Test:

   • Reconnect the Negative (-) battery cable.
   • Install the 15-amp fuse into the fuse holder.
   • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

8. Secure the Wiring Harness:

   • Use the provided cable ties to secure the T-One® T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.

9. Store the 4-Flat Connector:

   • Near the access panel, push the trim panel out slightly to route the 4-flat connector into the cargo area, underneath the trim panel.

   Note: Store the 4-flat connector in the rear cargo area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Honda Odyssey

Part Numbers:

• 118753

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Trailer Wiring Harness:

   • Open the rear hatch and push forward the rear seat.
   • Temporarily remove the vehicle’s access panel on the passenger side to access the vehicle’s trailer wiring harness.

2. Locate the Tow Plug:

   • Locate the blue tow plug inside the storage compartment, taped to the vehicle wiring harness.
   • Insert the tow plug into the connector. Be careful not to damage the locking tabs and ensure the connectors are fully inserted with the locking tabs in place.

3. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind any surface prior to drilling to avoid damage to the vehicle or personal injury.

4. Mount the Black Box:

   • On the driver’s side, mount the T-Connector black box using the provided double-sided tape.
   • Secure the remainder of the T-Connector harness with the provided cable ties, avoiding areas that may pinch or cut the wire.

5. Route the Power Wire:

   • Locate the black 12-gauge power wire from the T-Connector box.
   • Attach the provided black wire and route it along the vehicle’s exterior frame to the engine compartment, avoiding hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.

6. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.

   Warning: Follow all warnings and cautions printed on the tow vehicle’s battery.

7. Reconnect the Battery and Test:

   • Reconnect the Negative (-) battery cable.
   • Install the 15-amp fuse into the fuse holder.
   • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

8. Secure the Wiring Harness:

   • Use the provided cable ties to secure the T-One® T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.

9. Store the 4-Flat Connector:

   • Near the access panel, push the trim panel out slightly to route the 4-flat connector into the cargo area, underneath the trim panel.

   Note: Store the 4-flat connector in the rear cargo area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Refer to the vehicle owner’s manual for additional details.
• Store these instructions for future reference.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:
For complete warranty instructions, please download the full installation PDF.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation and Operation Instructions for the P3 Electronic Brake Control

Specifications:

• Supports 2, 4, 6, and 8 brake applications.
• Utilizes proportional braking with an inertial sensor.

Tools Required:

• Drill with a 1/8" bit.
• Screwdriver or nut driver.
• Wire crimp tool.
• Probe-type circuit tester.

Safety Notes:

1. Avoid mounting or activating RF-generating devices (e.g., cell phones) within 12 inches of the brake control.
2. Always adhere to the vehicle's Gross Combined Weight Rating (GCWR).
3. Do not use the Boost feature during icy or slippery road conditions.
4. Disconnect the trailer plug before testing a breakaway switch to prevent damage.

Hardware List:

• P3 Brake Control Unit.
• Mounting bracket.
• Wiring harness.
• #8 x 3/8" self-tapping screws.

Installation Instructions:

Mounting the Brake Control:

1. Traditional Bracket Mount:

   • Secure the bracket to a solid surface using the provided screws.
   • Attach the brake control unit and adjust to the desired angle.
   • Tighten screws securely.

2. Under Dash Pocket Mount:

   • Secure the small metal bracket with screws to a flat surface.
   • Attach the T-slot mount to the metal bracket and insert the brake control.

Wiring the Brake Control:

• Option 1: Use the included pigtail wiring harness for a generic installation.
• Option 2: Use an OEM-specific wiring harness compatible with the vehicle's tow package.
• Wire Functions:
  • Black: Positive power (+12V).
  • White: Vehicle ground.
  • Red: Cold side of brake pedal switch.
  • Blue: Trailer brakes output.

Setting Up the Control:

1. Connect the trailer to the vehicle.
2. Use the Menu/Options button to access the setup screen.
3. Select the brake type:
   • Electric: For electric brakes.
   • Hydraulic: For electric over hydraulic braking systems.
4. Adjust the power output to ensure effective braking without wheel lock-up.

Boost Feature:

• Provides enhanced braking sensitivity.
• Available in three levels:
  • B1: Light braking boost.
  • B2: Moderate braking boost.
  • B3: Aggressive braking boost.
• Recommended for heavier trailers or varying load conditions.

Reverse Mode:

• Cancel Boost and Hold features for 3 minutes by pressing and holding the Boost button for 5 seconds while holding the brake pedal.

Troubleshooting Guide:

Maintenance:

• Inspect connections and wiring regularly for damage or wear.
• Adjust trailer brakes after the first 200 miles of use and every 3,000 miles thereafter.
• Clean the brake control unit periodically to maintain optimal performance.

Warranty Information:

• Limited Lifetime Warranty:
  • Covers defects in materials and workmanship under normal use.
  • Excludes damage caused by misuse, improper installation, or external factors.
• Attention: For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
