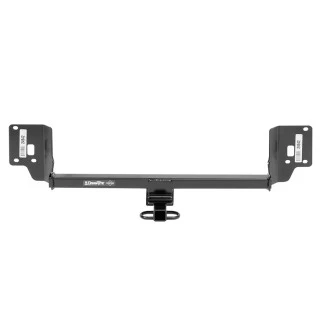

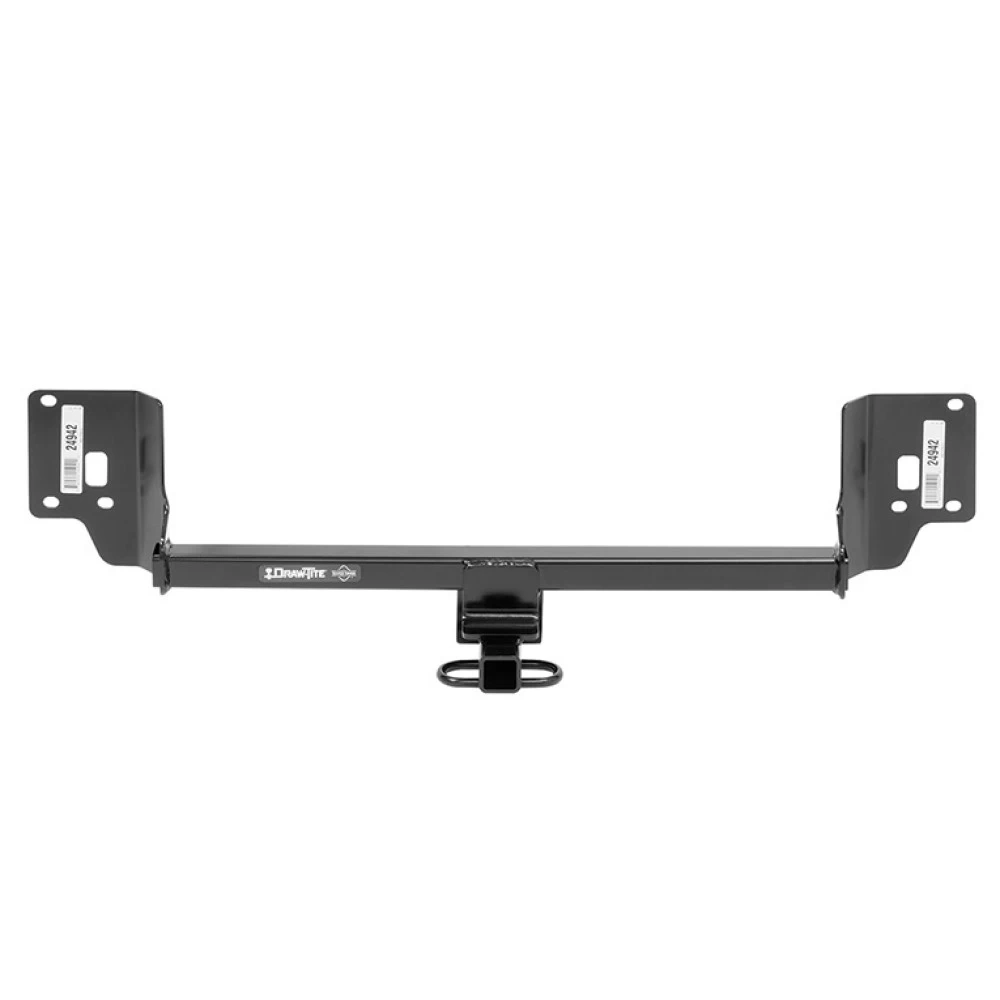

Trailer Tow Hitch For 15‑20 Acura TLX All Styles 1‑1/4" Towing Receiver Class 1
Model: 249422015 - 2020 Acura, TLX, All Styles
Trailer Hitch Specs:
| Part Number | 24942 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 2015 2016 2017 2018 2019 2020
$205 36 $320.73 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$320.73 $205 36
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 24942
- UPC: 742512249422

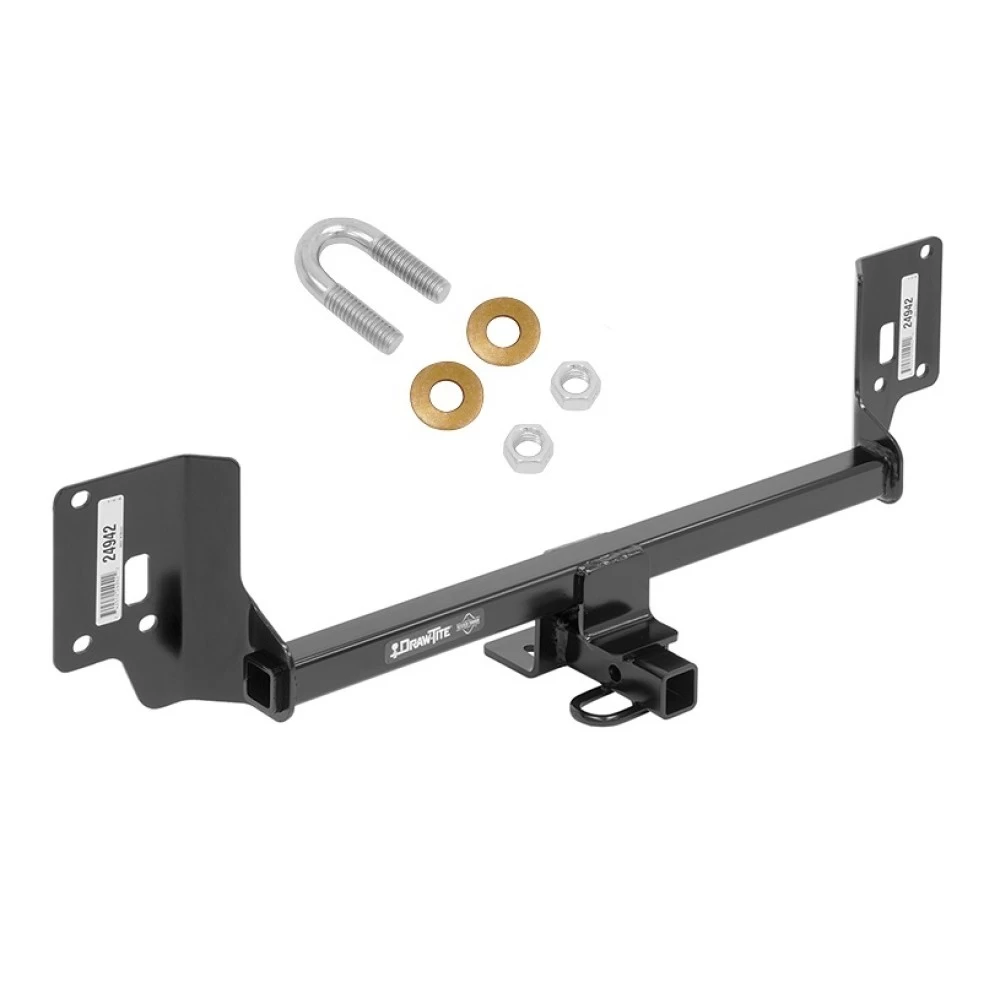

- Includes: Class 1 Trailer Tow Hitch
Compatibility Chart
2015 - 2020 Acura, TLX, All Styles
Trailer Hitch Specs:
| Part Number | 24942 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 2015 2016 2017 2018 2019 2020
Get Expert Help
Trailer Tow Hitch For 15-20 Acura TLX All Styles 1-1/4" Towing Receiver Class 1 Install Notes
Installation Instructions for Acura TLX (2015-Current)
Part Numbers:
- 24942
- 77329
- CQT24942
Wiring Access Location:
- PC3, PC4
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 12mm, 11/16"
- Flat-Head Screwdriver
- Phillips Screwdriver
- Utility Knife
- Tape Measure
- Tape
- Pliers
- Marker
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Installation Time:
- Approx. 60 minutes (Professional Installer)
Step-by-Step Instructions:
-
Remove Plastic Rivets:
- Remove the two plastic rivets securing the fascia tabs to the vehicle and trunk pan using a flat-head screwdriver. Retain rivets for reinstallation.
-
Remove Tail Lights and Gasket:
- Open the trunk and remove the plastic cover discs over the screws attaching the tail lights and fascia. Use a 10mm socket to remove the fasteners. Remove the lower trunk gasket.
- Gently push rearward on the tail lights while pulling outward to remove. Disconnect wiring and set aside.
-
Remove Lower Rear Fascia:
- Remove two Phillips screws in the wheel wells on both sides and one screw on each side at the lower attachment points. Carefully separate the lower fascia from the side panels by gently pulling upward.
-
Remove Bumper:
- Use a 12mm socket to remove six bolts securing the bumper. Bend the bumper hanger support to a 90-degree angle for clearance.
-
Install Hitch:
- Hang the U-bolt on the tow hook. Raise the hitch onto the bumper support on the end panel. Reinstall the original bolts and secure the hitch in place. Install the remaining fastener on the tow hook.
-
Tighten Fasteners:
- Torque M8 fasteners to 20 Lb.-Ft. (27 N*M).
- Torque 3/8" GR5 fasteners to 30 Lb.-Ft. (41 N*M).
-
Trim Fascia:
- Locate the center of the lower panel and trim a 3-3/4” x 3-3/4” section for clearance. Round the corners for a smooth finish.
-
Reinstall Components:
- Reinstall all fasteners, fascia, and tail lights removed in previous steps.

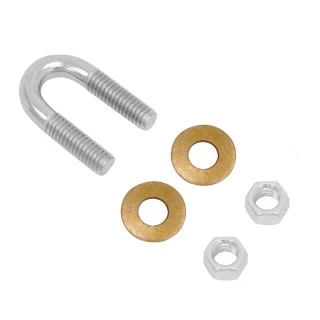

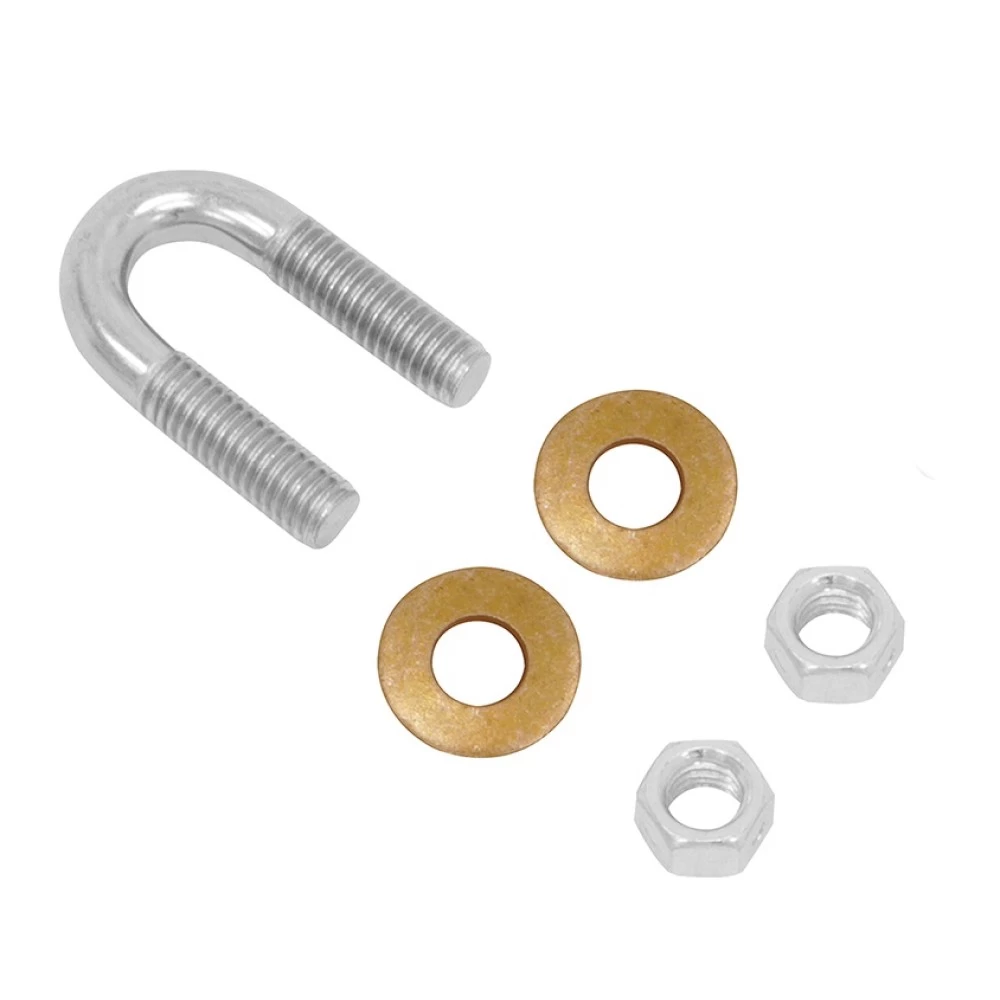

Hardware List:
- (1) U-Bolt: 3/8"-16 GR5
- (2) Conical Washers: 3/8"
- (2) Hex Nuts: 3/8"-16
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they remain securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection while working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
